Package include:
* 1 x UC300 Motion Control Breakout Board (3/4/6 axis optionals)
* 1 x Standard Ethernet cable
* 2 x Terminals
User manual will be send by email
After purchase,pls leave ur e-mail ID,thank u.

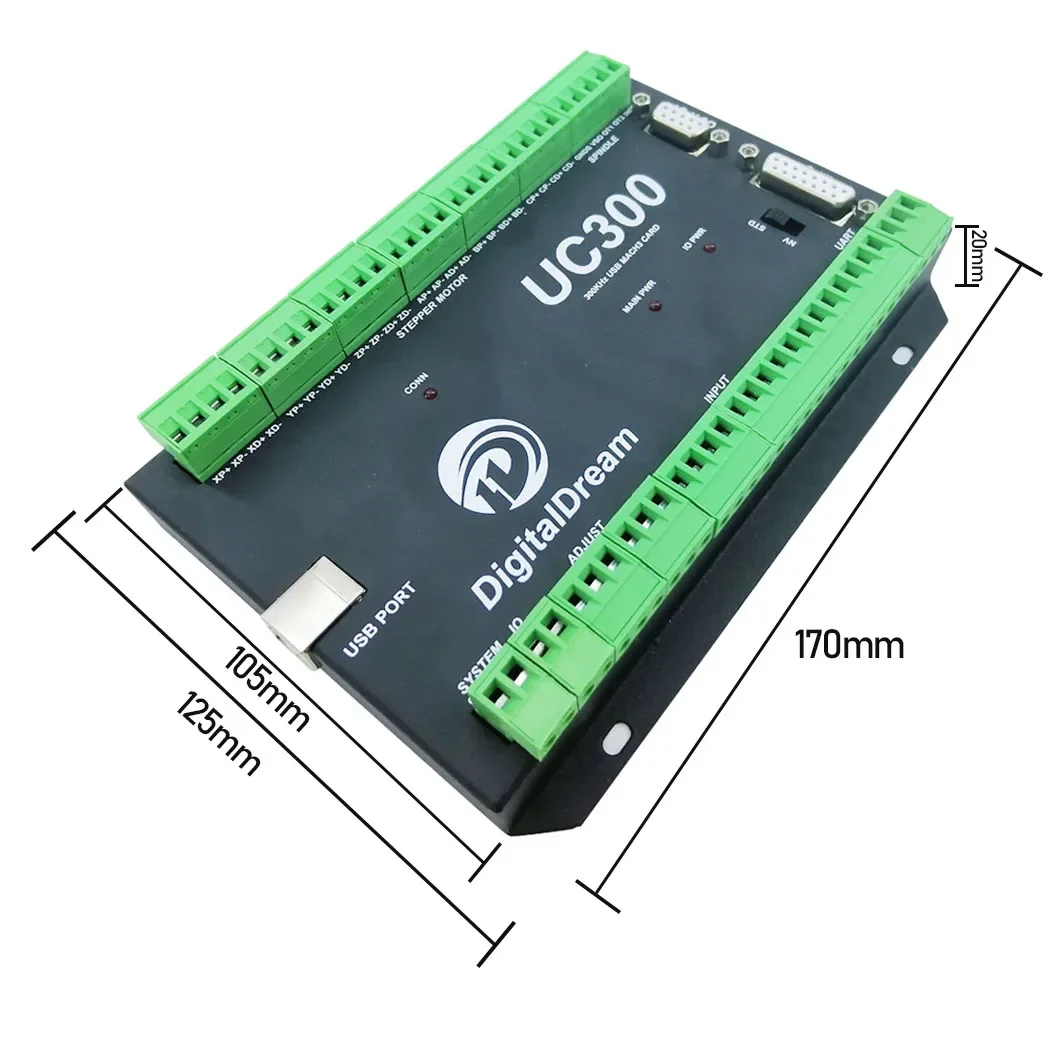

The UC300 is a high-performace external motion controller for Mach3,
with USB port communicated Mach 3 software,supporting standard MPG and Digital Dream MPG.
The device can communicate with a connection to a control computer’s network.
The network connection can be built with direct connection by USB Port.
The computer connects to the UC300 via a standard USB cable.
It’s the best to shiled the communication USB cable to ignore the interferences.
The device can be used to control machine tools with stepper or servo motor with pulse and
1. Motion control 3-6 Axis(X,Y,Z,A,B,C) for option,max frequency output 300Khz/Axis;
2. USB Communication with Mach 3 Software;
3. Main power supply 24VDC,Current should higher than 1A;
4. IO Power is 24VDC power supply input,current should higher than 1A(The controller already supply the power for IO port,
no need the external power supply for IO port anymore);
5. 12 opto-isolated digital input ports,10 opto-isolated digital output ports;
6. 1 analog output port of 0-10V adjustable speed for spindle (can change to PWM output port);
7. ARM motion control chip;
8. Compatible with Standard MPG and also Digital Dream MPG
Product connection define and method
1. USB Communication Interface to PC

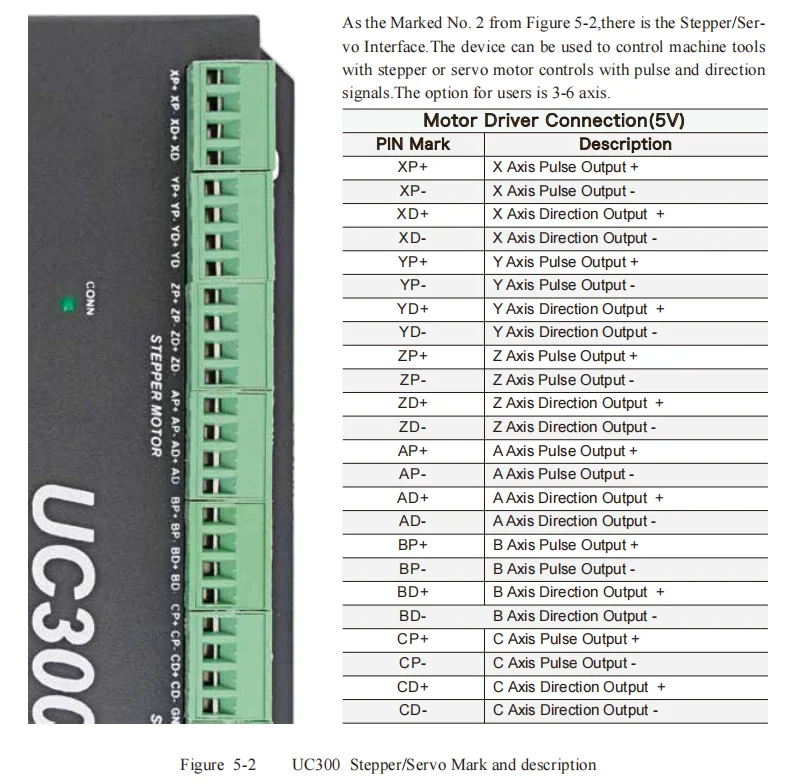

2. Stepper/Servo motor Driver connection port

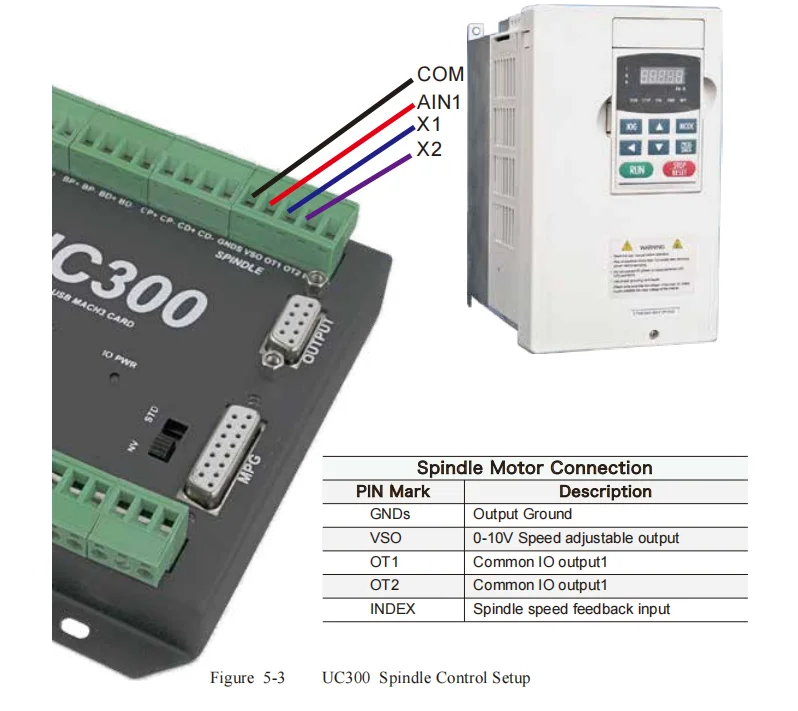

3. Spindle Control Output Port
4. Gerneral Output Interface
5. MPG Port
6. Functional Switch for MPG:Standard MPG or Digital Dream MPG
7. Serial Extend Port
8. Input Port:Limit/Home/Probe and so on
9. Adjustable parameter Input Port
10. Main System and IO Power Port
direction interface;the controller can output a maximum of 300kHz stepping frequency for each
axes and can work with upto 6-axes.The Controller is 3-6 Axis for user’s options
